Connector to Tap

IBC CAP (S60X6) to NICKEL PLATED BRASS LEVER TAP with DOUBLE outlet. c/w snap on connector

IBC CAP (S60X6) to NICKEL PLATED BRASS LEVER TAP with DOUBLE outlet. c/w snap on connector

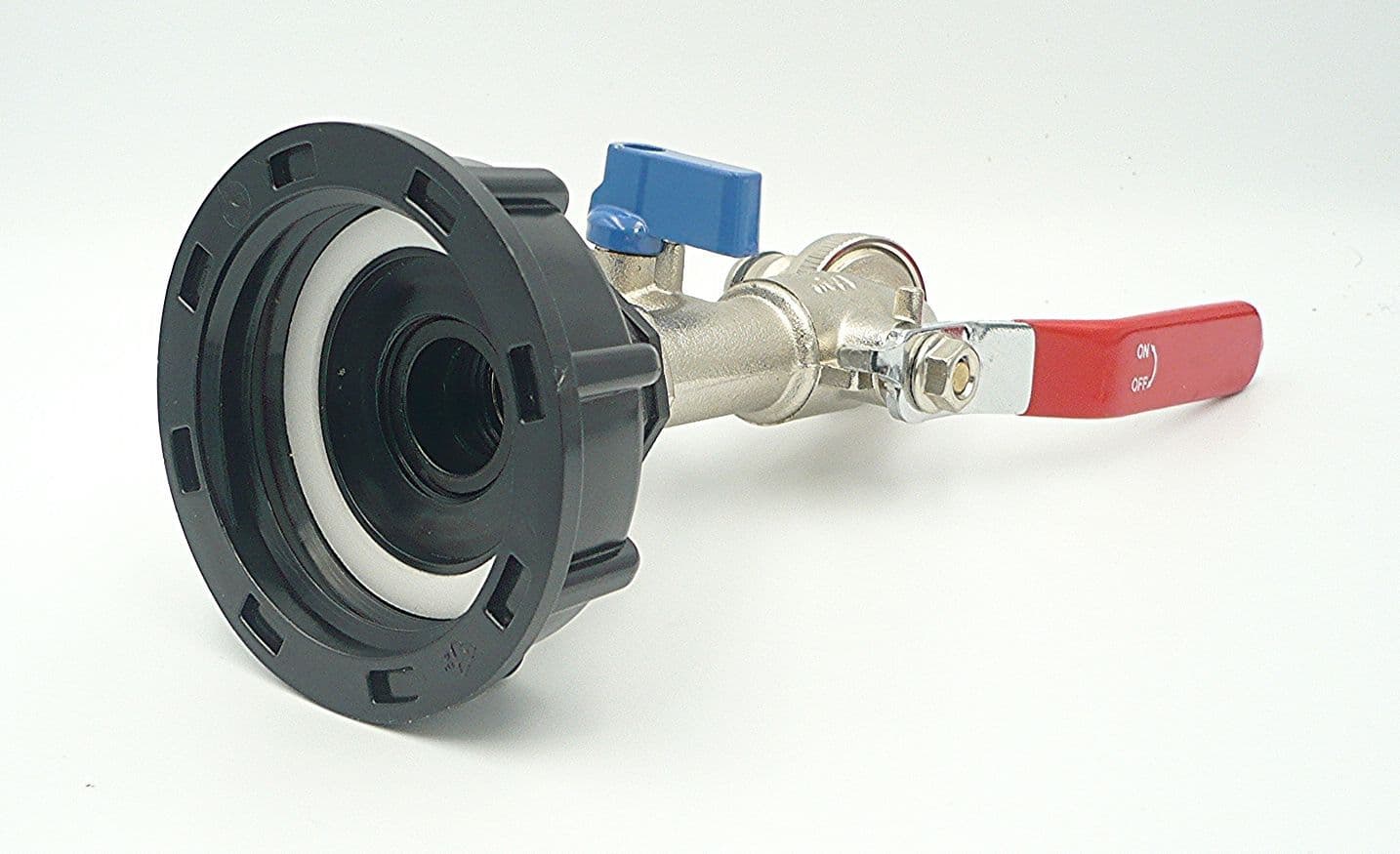

This is an IBC adapter (S60X6 coarse thread) & plated brass lever tap with TWIN outlets.

Both outlets have a 3/4" BSP male thread and one has a plated snap on connector attached for standard 1/2" garden hose .

You can have a hose pipe permanently connected to one outlet whilst still having a second outlet available for filling watering cans etc.

The tap also acts as useful back up safety valve, or for fine flow control.

The lever tap is much easier and quicker to operate than the conventional Brass Bib Tap.

These items are supplied fully assembled and not in Kit Form

Will it fit my tank?

It will fit most standard UK and European IBC containers where the buttress thread is a coarse S60X6 thread. An S60X6 Buttress thread measures 60 mm across from thread edge to thread edge and has a 6 mm pitch (distance between the threads).

If your tank buttress is not an S60X6 (about 20% are not) you can purchase a Buttress Thread Converter which will convert the thread to the S60X6 you will require.  If you know the measurements of your buttress thread take a look at the “Buttress Thread Converters” Category which you can access from the home page.  If you are not sure send us a message and we will try to point you in the right direction.

  • Weight:
    1.5kg
