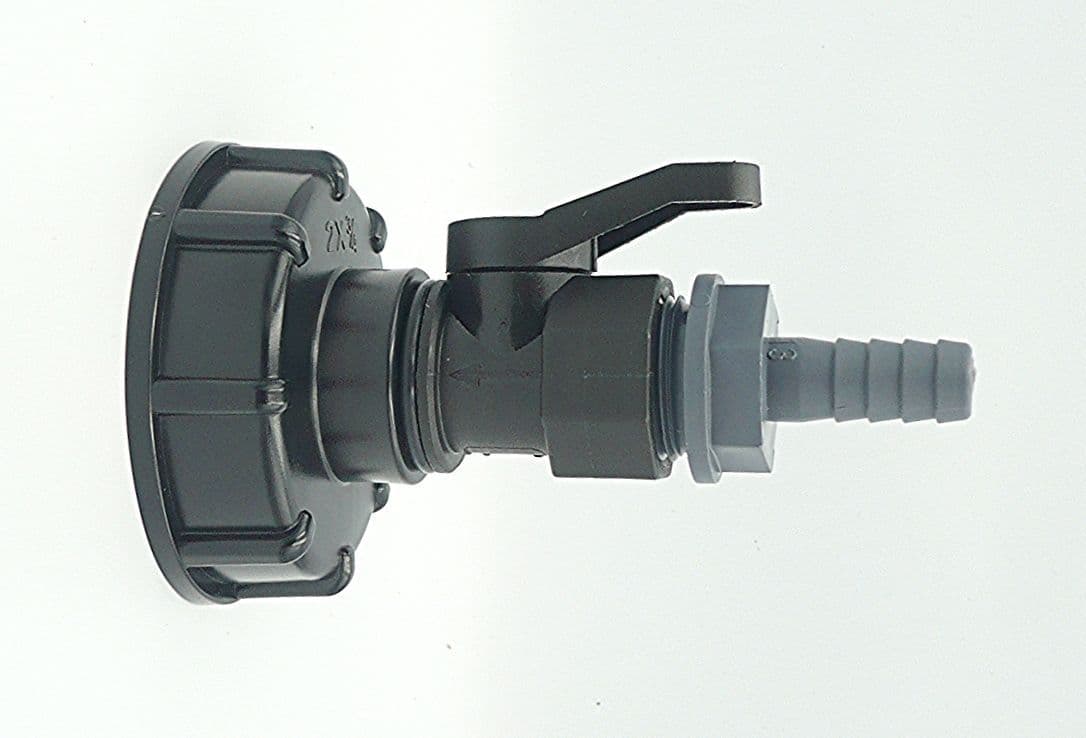

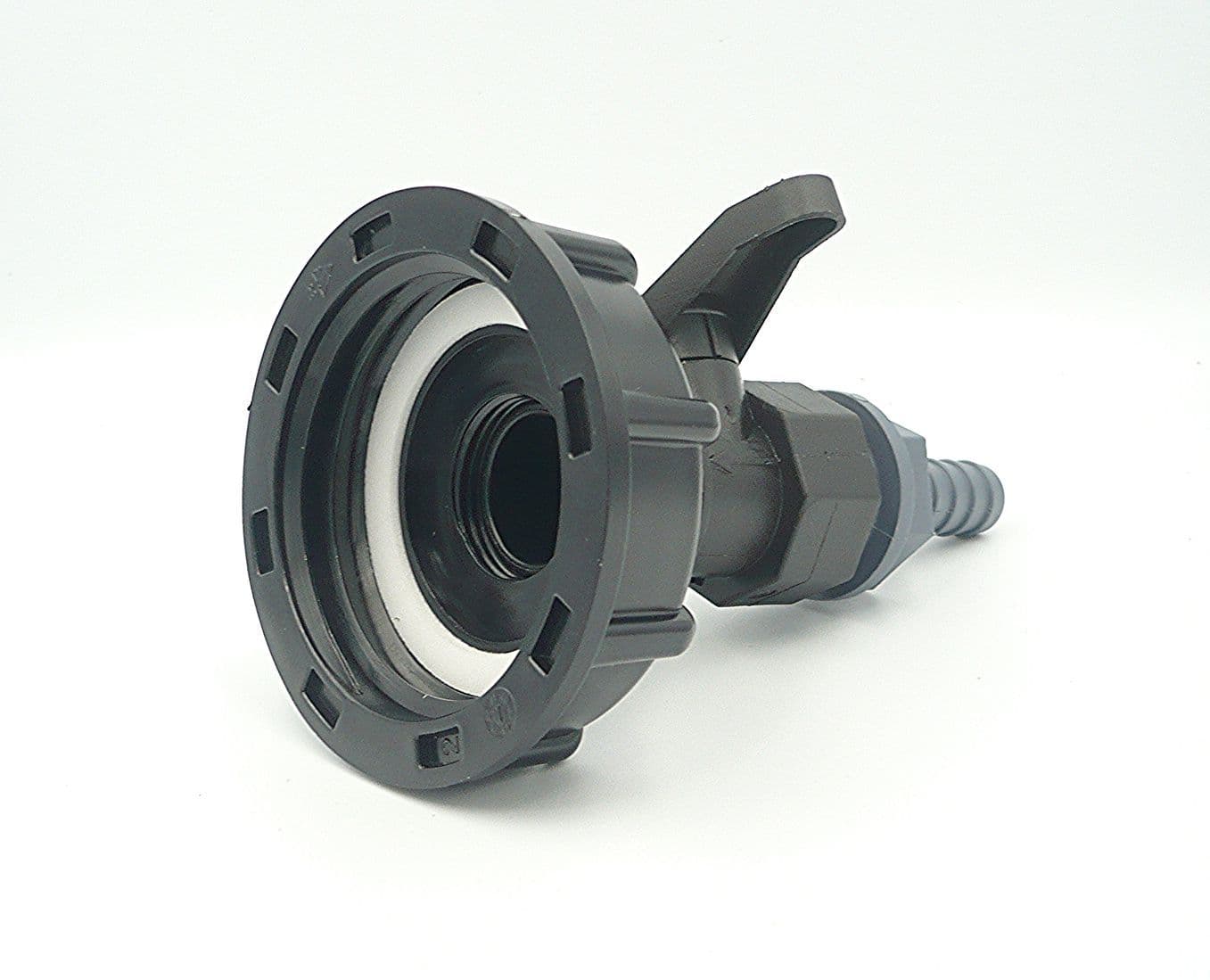

This is an adapter to fit standard UK & European IBC Containers which normally have a 2" BORE, which is a 60mm Buttress/Coarse Thread (measured thread edge to thread edge).

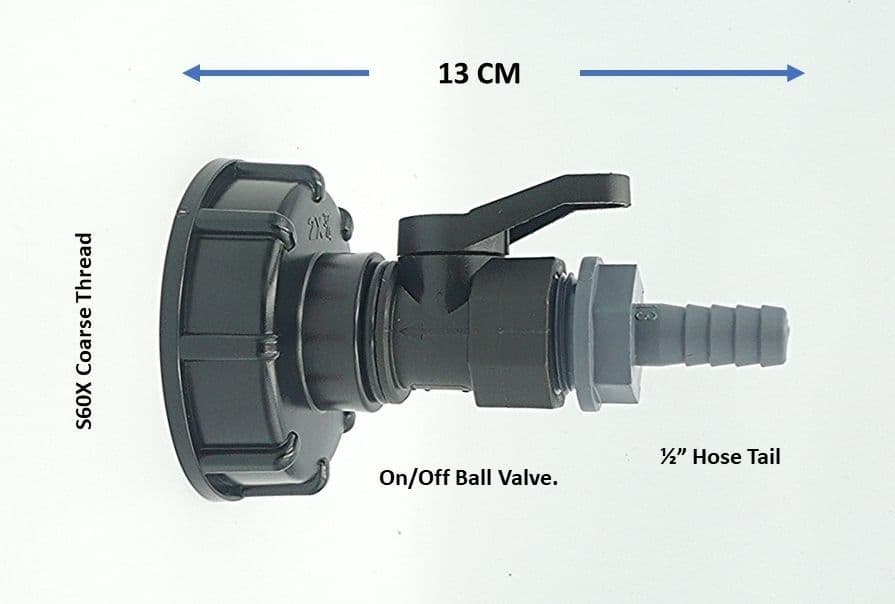

It converts the buttress IBC thread to a 1/2" (13 mm) Barbed Hose Tail with in-line On/Off BALL VALVE.
The BALL VALVE is 4 Bar pressure rated and they have a very smooth and easy On/Off action.
WILL IT FIT MY TANK?
These adapters will fit most standard UK and European IBC containers where the buttress thread is a coarse S60X6 thread. An S60X6 Buttress thread measures 60 mm across from thread edge to thread edge and has a 6 mm pitch (distance between the threads).
If your tank buttress is not an S60X6 (about 20% are not) you can purchase a Buttress Thread Converter which will convert the thread to the S60X6 you will require. If you know the measurements of your buttress thread take a look at the “Buttress Thread Converters” Category which you can access from the home page. If you are not sure send us a message and we will try to point you in the right direction.
